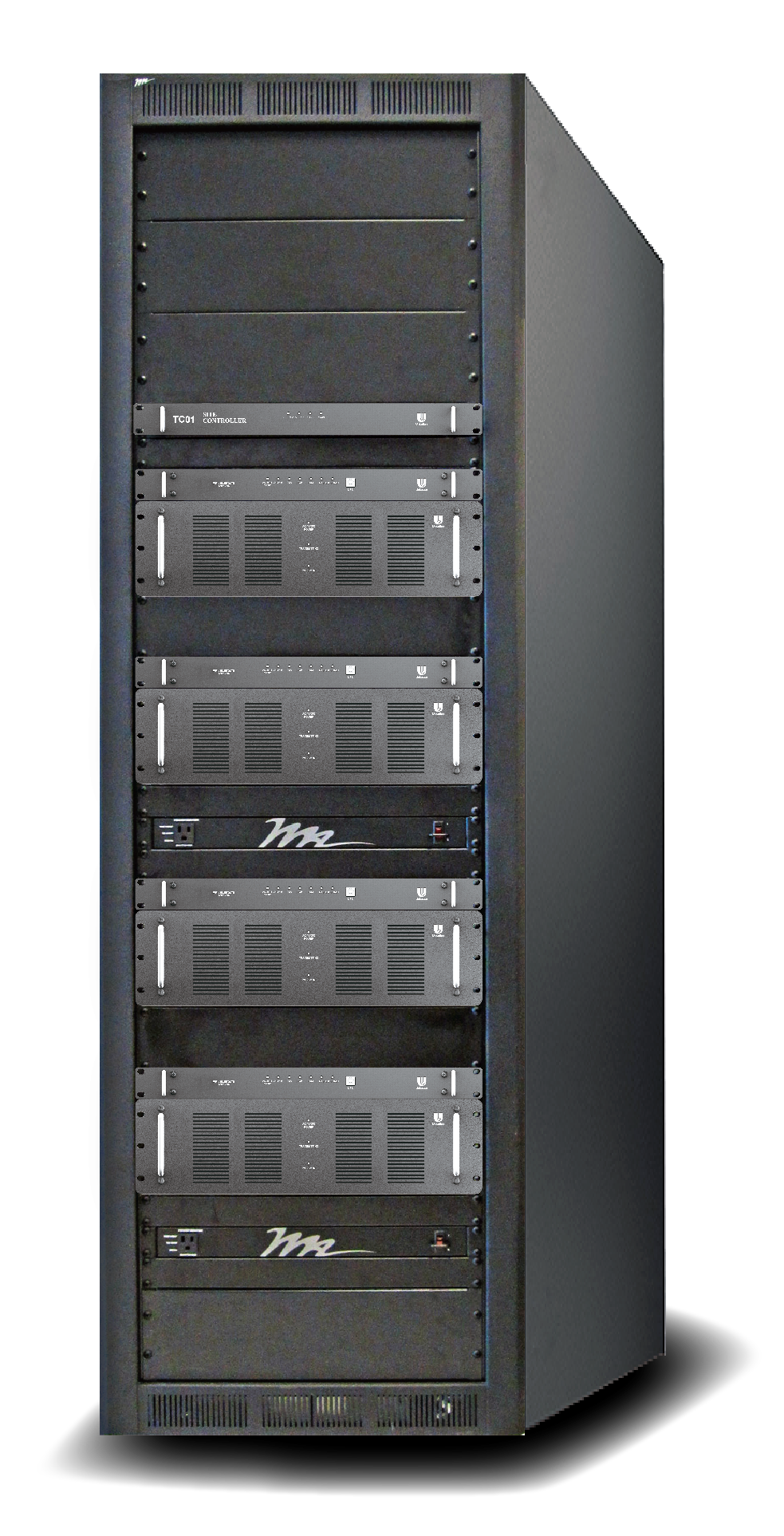

Total Solution > MicroSite Trunking System
Innovative Solutions for Problem Solving
Features
FLEXIBLE PLATFORM TOPOLOGIES
- 1-way P25 Trunking Coverage Extension for P25 Paging.
- Upgradable to 2-way Trunking. Re-uses the 1-way Paging equipment. (GPS Locked frequency & Time reference.)
- Base Station Radio R0x has independent and configurable Receiver band Transmitter frequency bands.
- Conventional : dynamic mixed mode P25 digital conventional or analog conventional
- Data : Dynamic assignment between voice and SNDCP data frames
- Linear option supports
RADIO LINKING TO RECEIVE HOST SITE USING DIRECTIONAL ANTENNAS
- Cost effective, efficient installation.
- No monthly linking costs for 1-way paging site configuration using TC01.
- Can re-use legacy County Fire / Police Station sites / towers using TC01.
STANDARD P25 STANDARD ISSI IP LINKING USING TC01
- Interface to standard dispatch and existing radio systems.
- Dual redundant Microwave radio and / or / Fibre etc.
- Software upgrade to support ISSI standard 2-way site configuration
INBOUND P25 RECEIVER DIVERSITY USING CR01
- CR01 receivers installed in problem areas (no fan, can be in ‘dusty’ environment).
- Install DCS “Diversity combiner software” at main repeater BR01site.
- Rugged metal housing, no fan, 12VDC operation (wall adapter, standard UPS), wide temperature operating range -30 to 60C.
- No FCC license required for the CR01 site, can use low cost sites.
- GPS Synchronization and packet time stamping.
- Connects to BR01 repeater site diversity combiner DC01 unit.
- Multiple connection methods to DC01.
- Wifi, LTE, Ethernet, BR01 RF linking, 4wire, satellite.
ALARM REPORTING
- TX01 Alarms and information include these.
- CR01 Alarms and information.

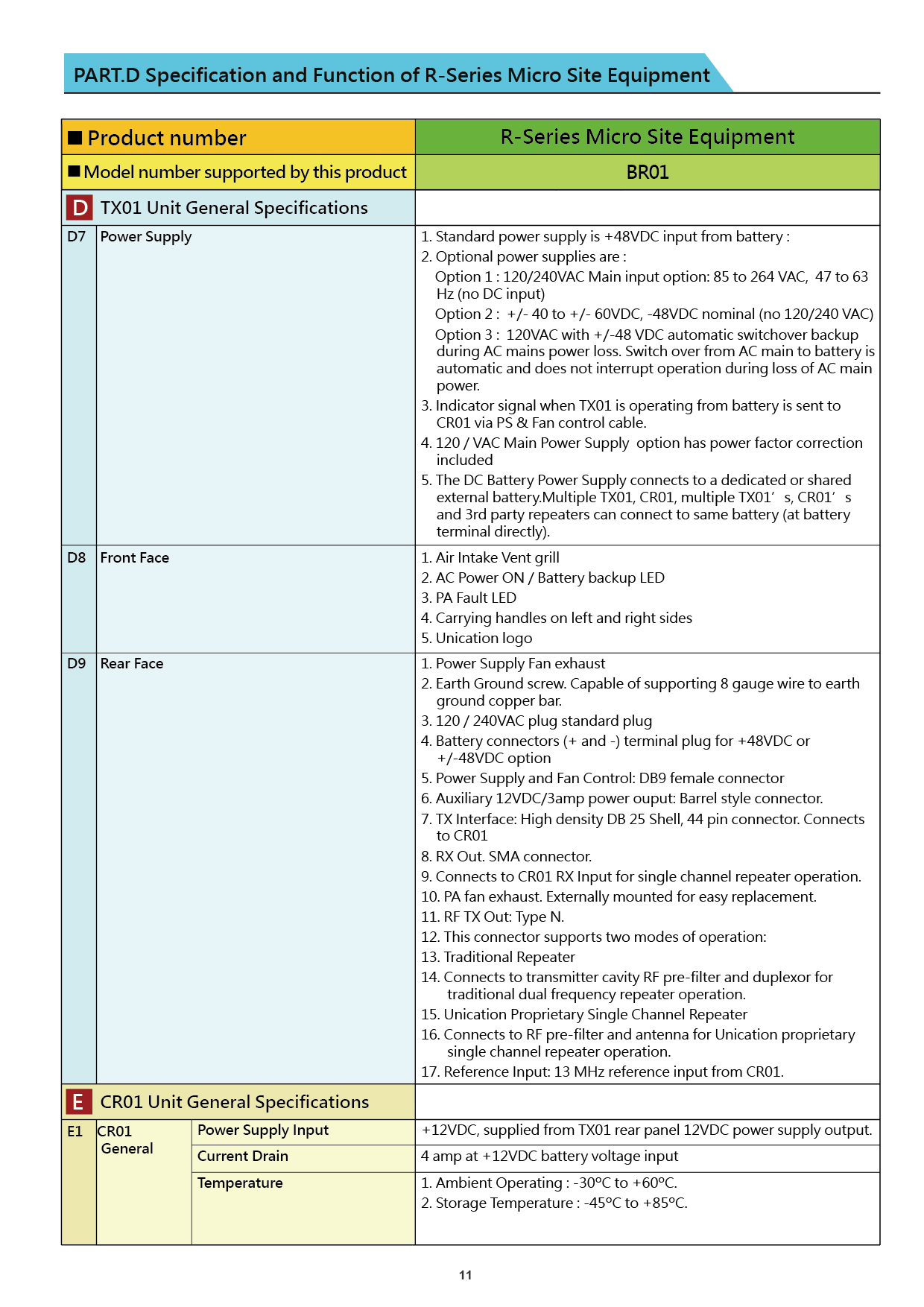

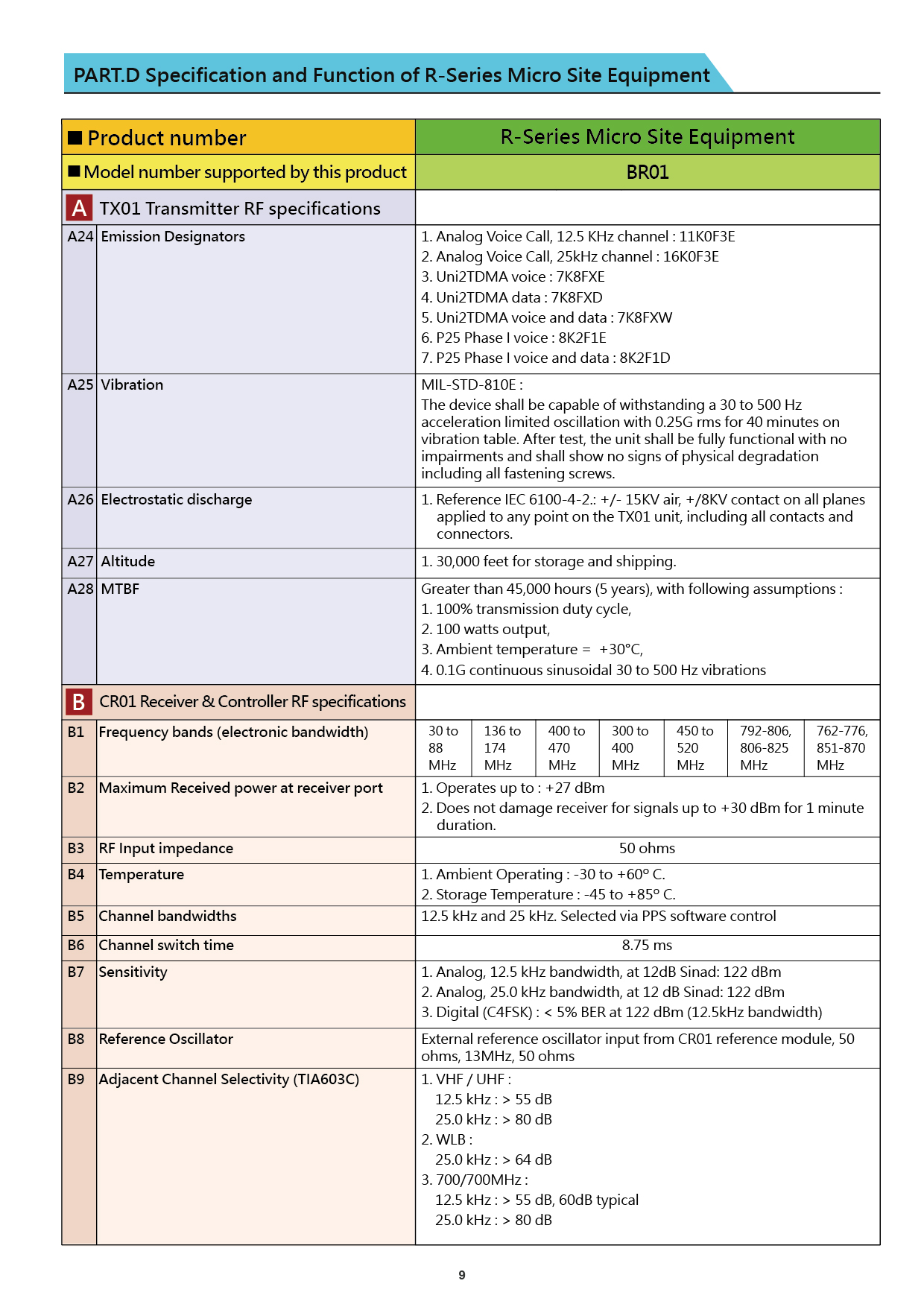

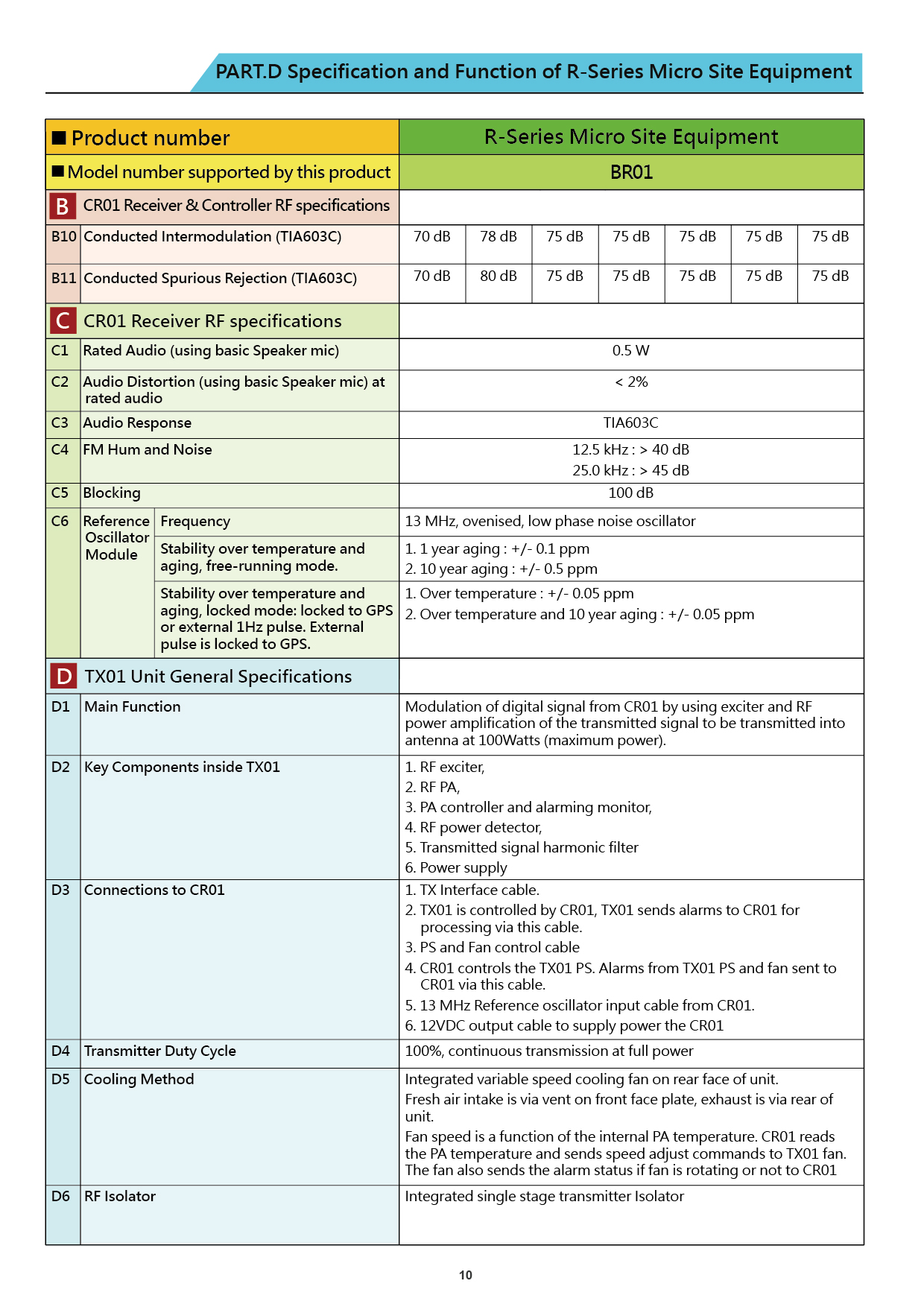

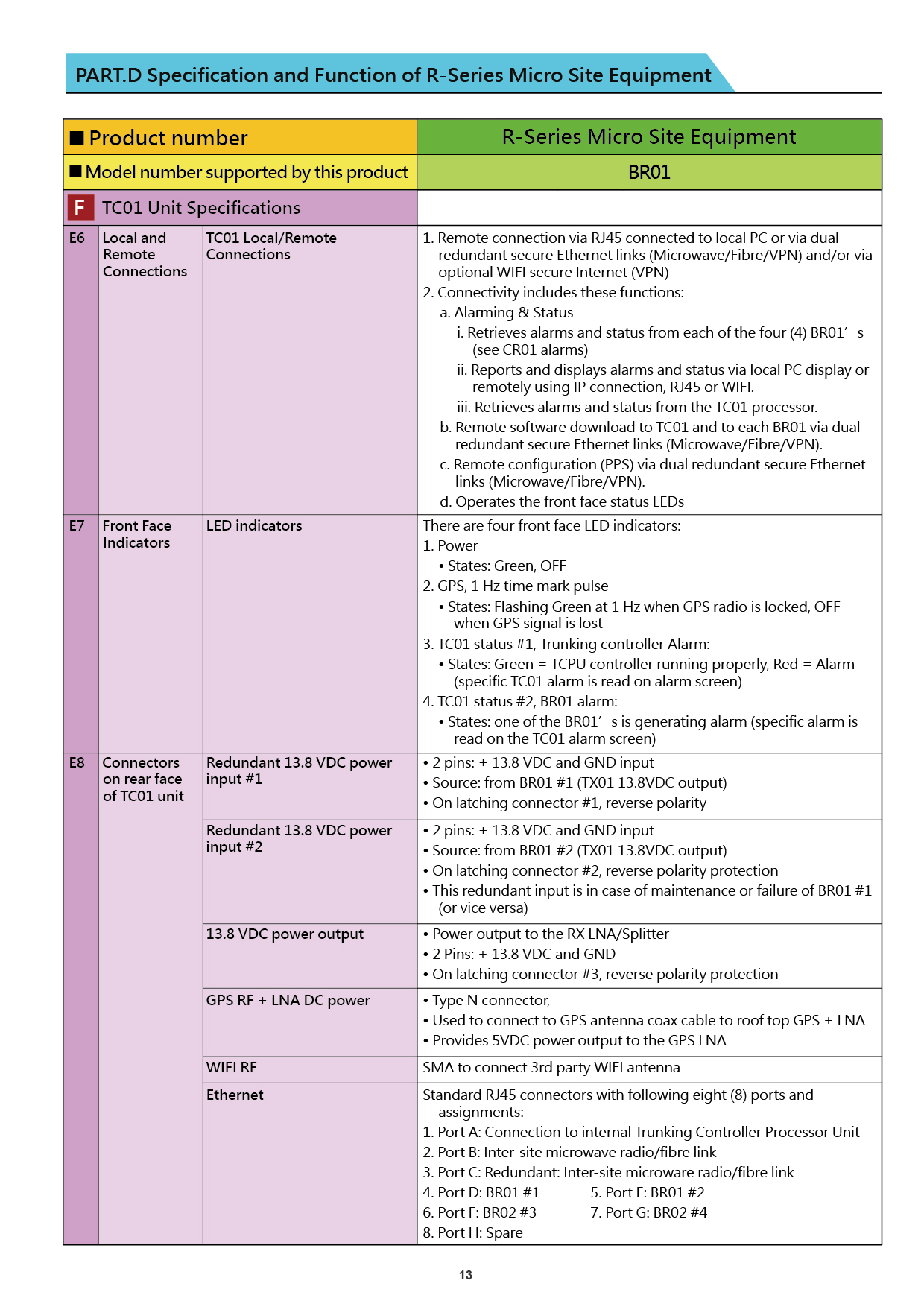

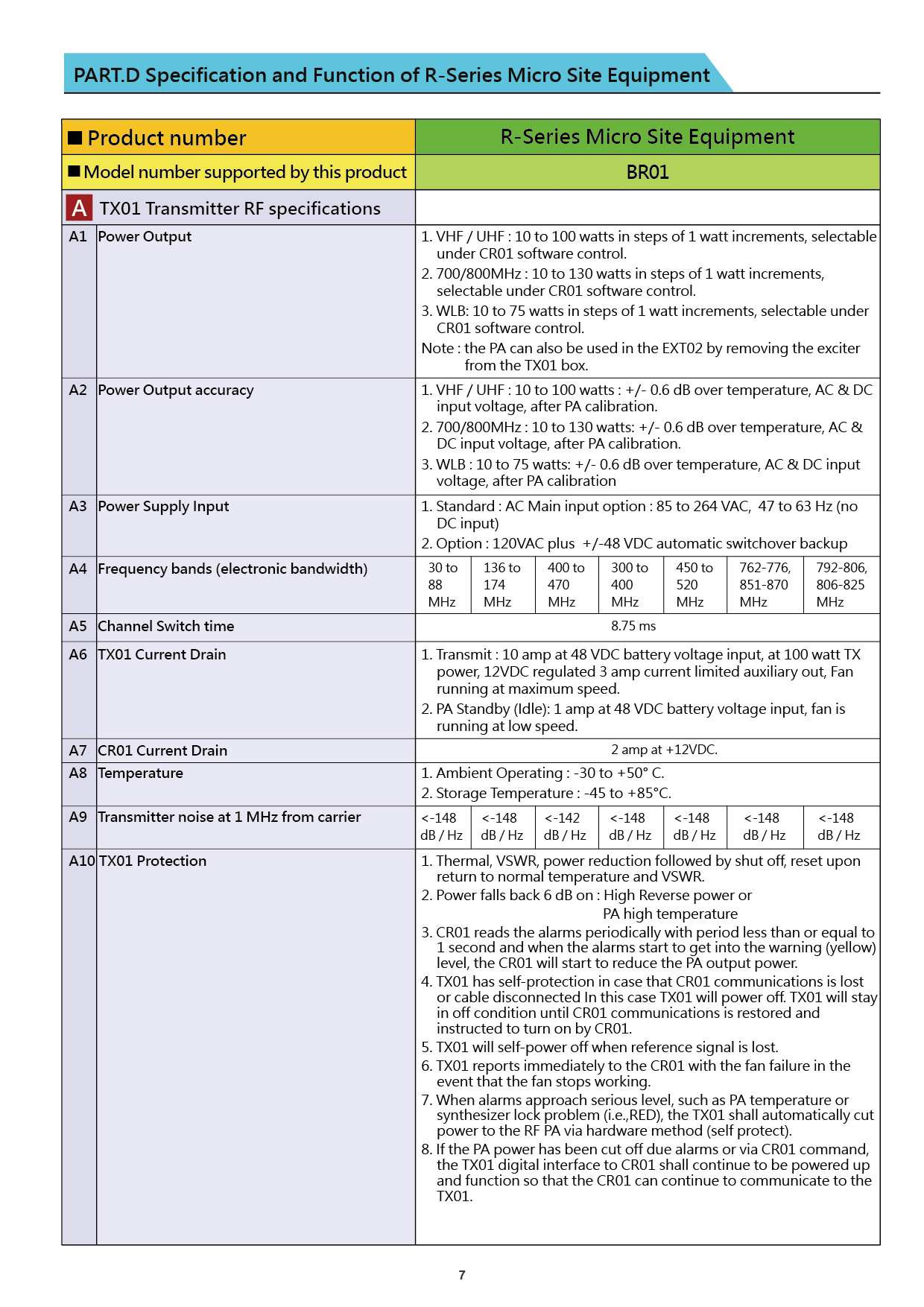

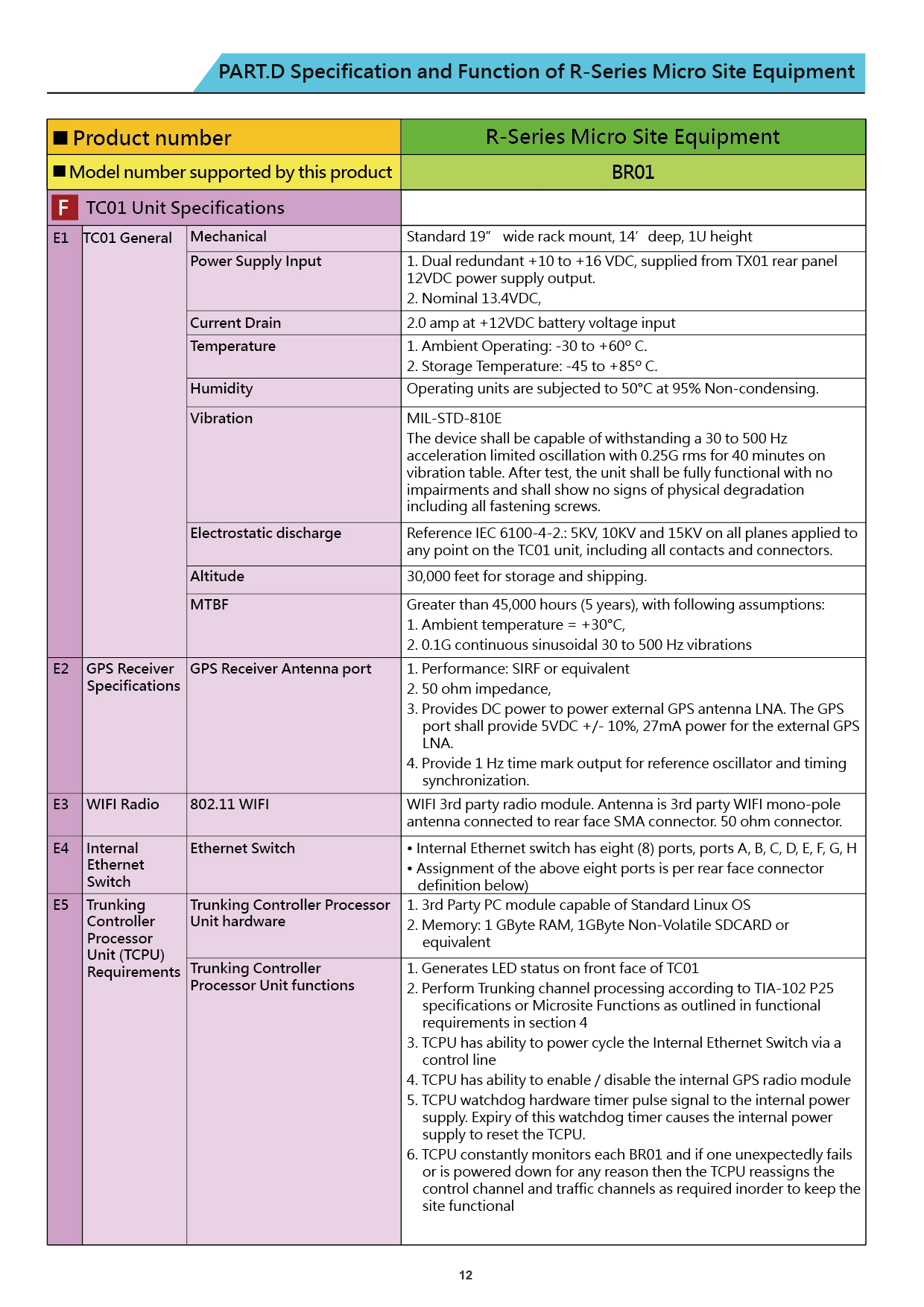

Specifications
Accessories
Downloads
Product Brochure Download
